工作原理

    液/固混合流体通过进料管分布于乐动(中国)转鼓内，在离心力场作用下，通过滤片截留固相，滤出液相。持续进料，直至料满，停止进料，如工艺需要时则对滤饼进行洗涤、提纯，同时将洗涤液滤出。进一步脱液，直至达到分离要求。停机，开盖，人工或吊袋将滤饼卸出，完成一次工作循环。

    PQSB为人工卸料方式(可满足洁净区使用要求)。

    PQSB为全开盖形式，可以在需要时机壳全开后对机壳和转鼓等部位进行清洗和检查。

Operating principle

Mixed solid and liquid fluids enters centrifuge drum via feed pipe. acting on the centrifugal position. Liquid-solid mixed fluid intercept the solid phase through the filter to filter out the liquid phase. Centrifuge Continues to feed until full. Then stop.

Solid cake is rinsed and purified when the process requires. And the rinsing liquid is filtered out meanwhile. Centrifuge further filter until the separation requirements are met.

Stop&open cover. manual or hanging bag to remove filter cake to complete a working cycle.

PQSB as platform manual Top discharge mode (meet the clean area use requirements) .

PQSB as fully open cover form. Cleaning and inspection of housing and drum parts can be carried out after full opening of the housing when needed.

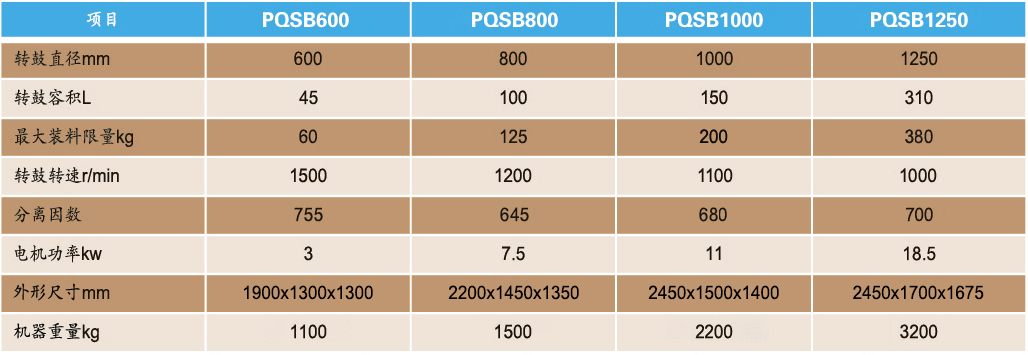

技术参数  Technical parameter
